Bolster Deck Rail Range

NameCodeBrandCoverLengthMaterialMax Bar SizeMin Bar SizeReo TypeStrength (kg)Style
Continuous Deck Rail BASE 750mm Long33BDR.BASECONAC-750PlasticAnyAnyBase-ContinuousOrder
Continuous Deck Rail 95mm - 750mm Long33BDR.095CONAC95750PlasticAnyAnyBar,Mesh60ContinuousOrder
Continuous Deck Rail 90mm - 750mm Long33BDR.090CONAC90750PlasticAnyAnyBar,Mesh60ContinuousOrder
Continuous Deck Rail 85mm - 750mm Long33BDR.085CONAC85750PlasticAnyAnyBar,Mesh60ContinuousOrder
Continuous Deck Rail 80mm - 750mm Long33BDR.080CONAC80750PlasticAnyAnyBar,Mesh60ContinuousOrder
Continuous Deck Rail 75mm - 750mm Long33BDR.075CONAC75750PlasticAnyAnyBar,Mesh60ContinuousOrder
Continuous Deck Rail 70mm - 750mm Long33BDR.070CONAC70750PlasticAnyAnyBar,Mesh60ContinuousOrder
Continuous Deck Rail 65mm - 750mm Long33BDR.065CONAC65750PlasticAnyAnyBar,Mesh60ContinuousOrder
Continuous Deck Rail 60mm - 750mm Long33BDR.060CONAC60750PlasticAnyAnyBar,Mesh60ContinuousOrder
Continuous Deck Rail 55mm - 750mm Long33BDR.055CONAC55750PlasticAnyAnyBar,Mesh60ContinuousOrder
Continuous Deck Rail 50mm - 750mm Long33BDR.050CONAC50750PlasticAnyAnyBar,Mesh60ContinuousOrder
Continuous Deck Rail 45mm - 750mm Long33BDR.045CONAC45750PlasticAnyAnyBar,Mesh60ContinuousOrder
Continuous Deck Rail 40mm - 750mm Long33BDR.040CONAC40750PlasticAnyAnyBar,Mesh60ContinuousOrder
Continuous Deck Rail 35mm - 750mm Long33BDR.035CONAC35750PlasticAnyAnyBar,Mesh60ContinuousOrder
Continuous Deck Rail 30mm - 750mm Long33BDR.030CONAC30750PlasticAnyAnyBar,Mesh60ContinuousOrder
Continuous Deck Rail 25mm - 750mm Long33BDR.025CONAC25750PlasticAnyAnyBar,Mesh60ContinuousOrder
Continuous Deck Rail 100mm - 750mm Long33BDR.100CONAC100750PlasticAnyAnyBar,Mesh60ContinuousOrder

Overview

Product Description

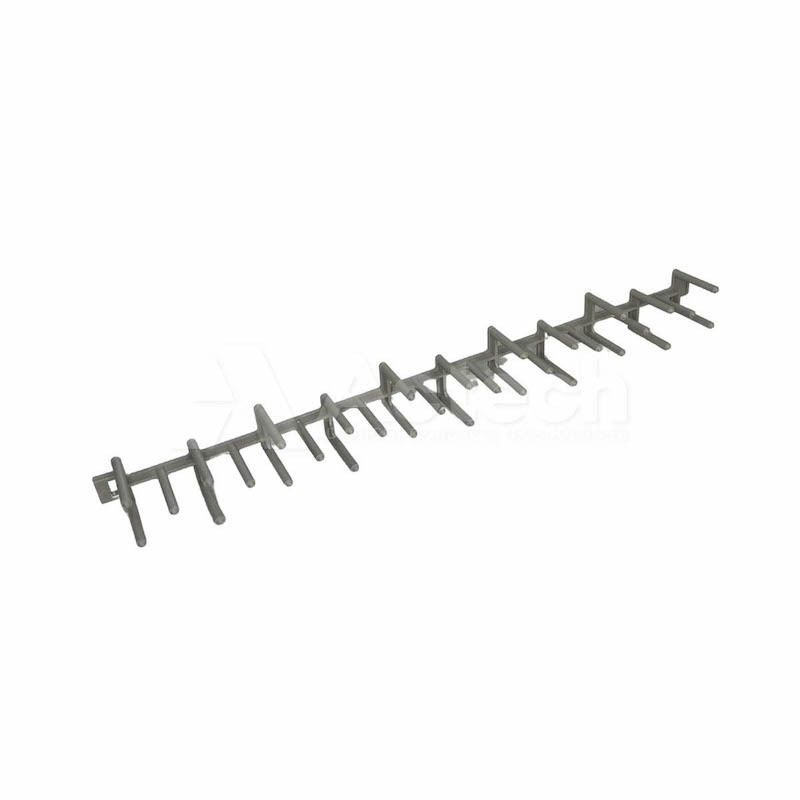

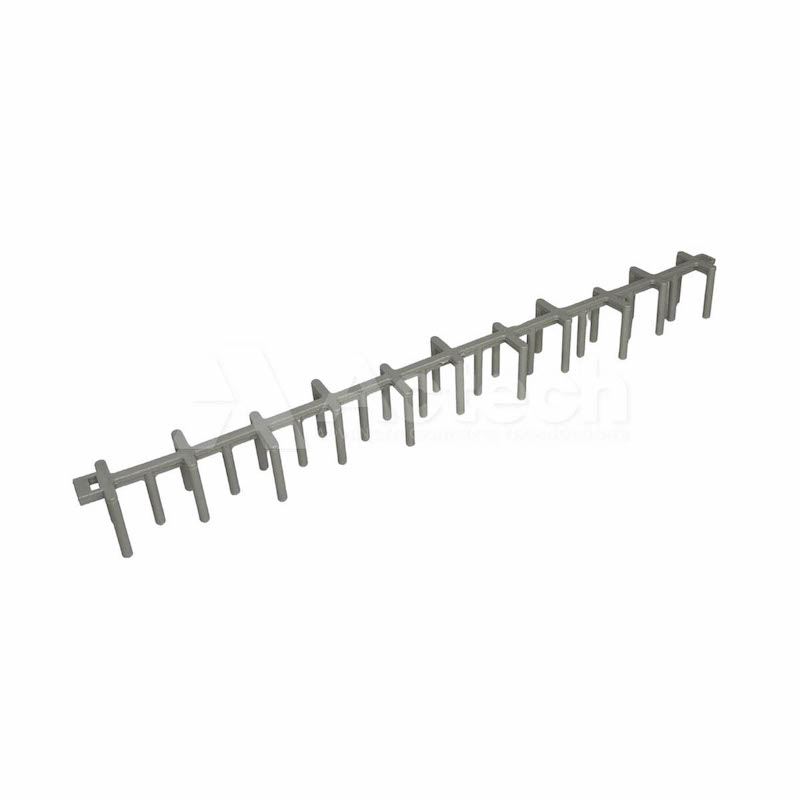

Plastic Deck Rail or Bolster Deck Rail are a 750 mm long continuous spacers for formwork applications. In addition to providing minimal exposure, these plastic deck rails are stable and are highly capable of spreading the load as compared to individual spacers.

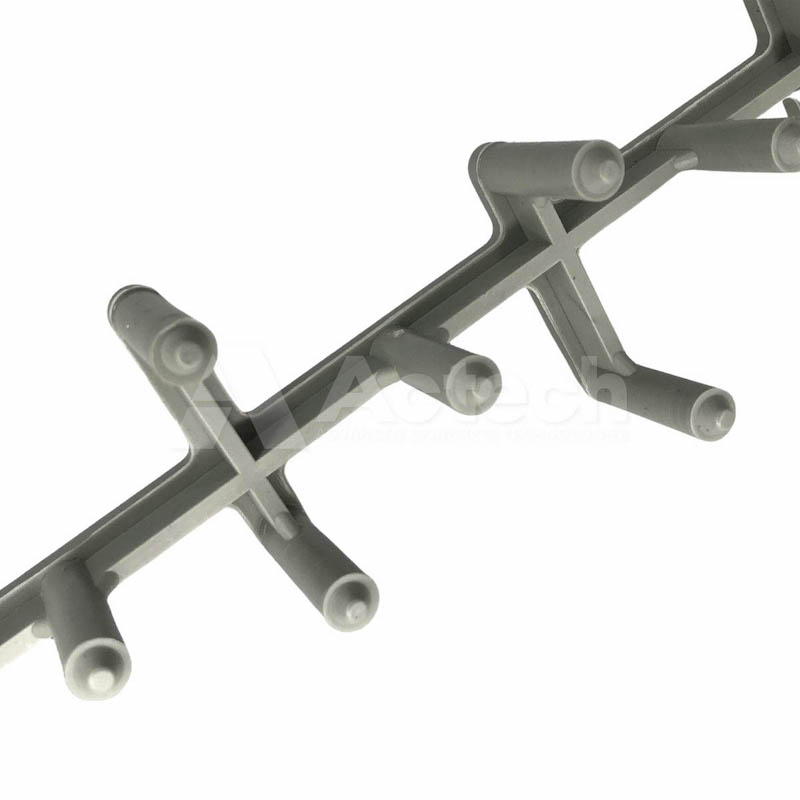

In addition to the sets of vertical legs at 75mm centers, the centrally positioned support legs provide the deck rail with the stability and strength required on construction sites.

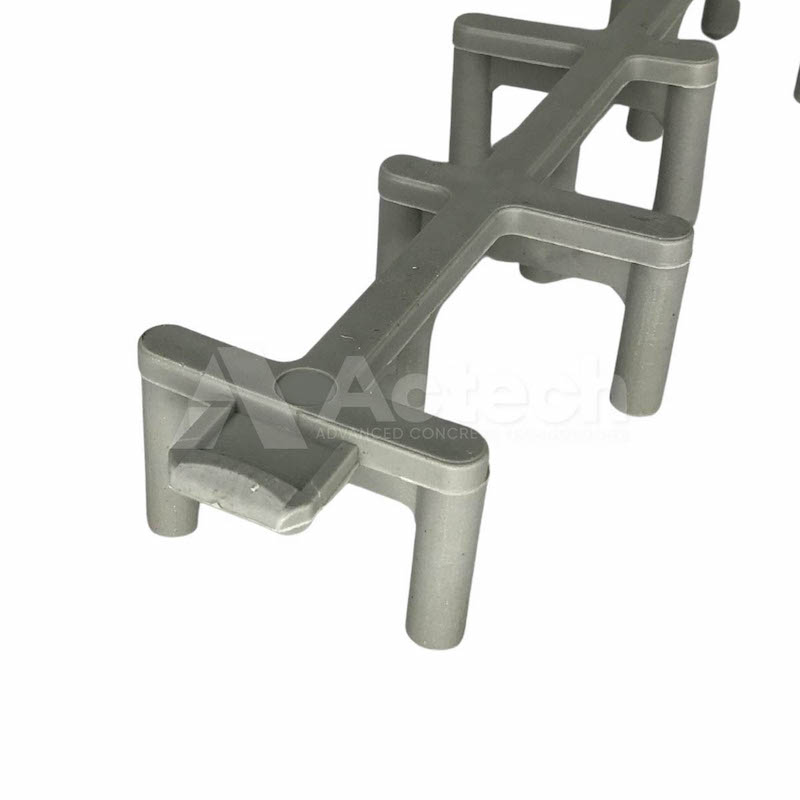

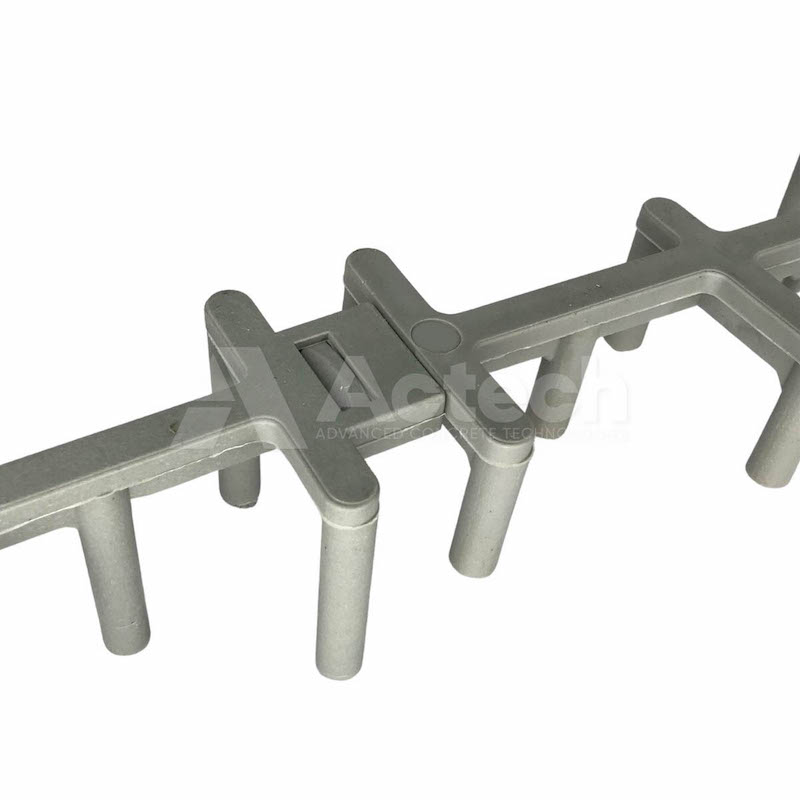

Another key design feature is that the male and female connections at either end of the plastic deck rail allow the user to connect multiple deck rails to any given length.

Fields of Application

  • Suspended decks
  • Precast or Tilt-up panels
  • In situ and precast beams
  • Slabs on blinding concrete

Key Features

  • Strong, sturdy & stable design
  • Male & Female connection for fast assembly on-site
  • Available in many sizes
  • Deck Rail base for slab-on-ground applications is available separately
  • Complies with AS/NZS 2425:2015 with a 120 kg rating

Specifications

SKU33BDR.095
Shipping Weight0 kg
BrandCONAC
Cover95
Length750
MaterialPlastic
Max Bar SizeAny
Min Bar SizeAny
Reo TypeBar, Mesh
Strength (kg)60
StyleContinuous

Documents

CDR 95/750mm TDS (Technical Data)
Bolster Deck Rail TDS (Technical Data)
