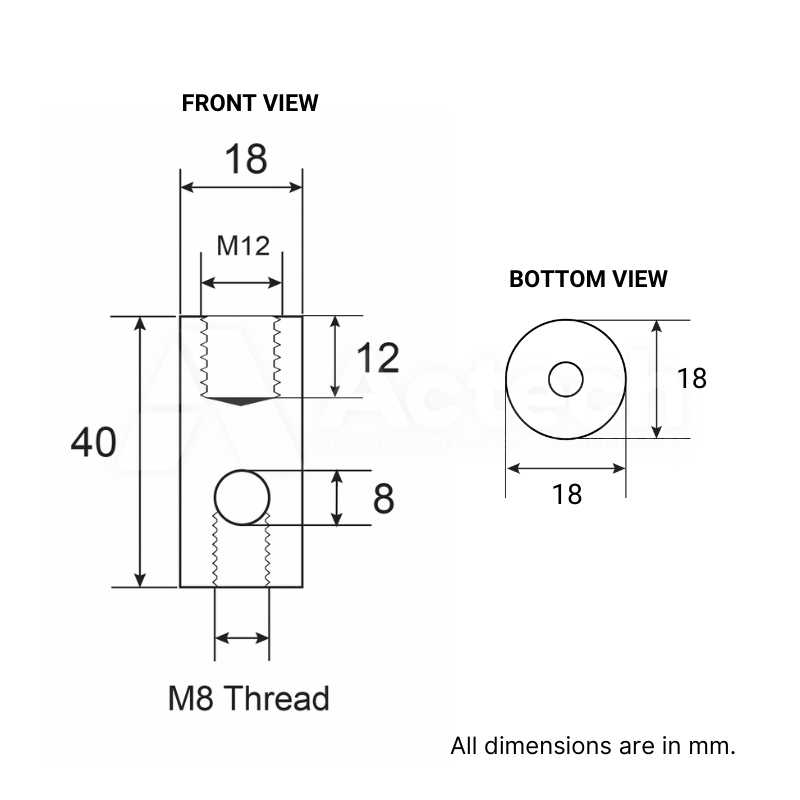

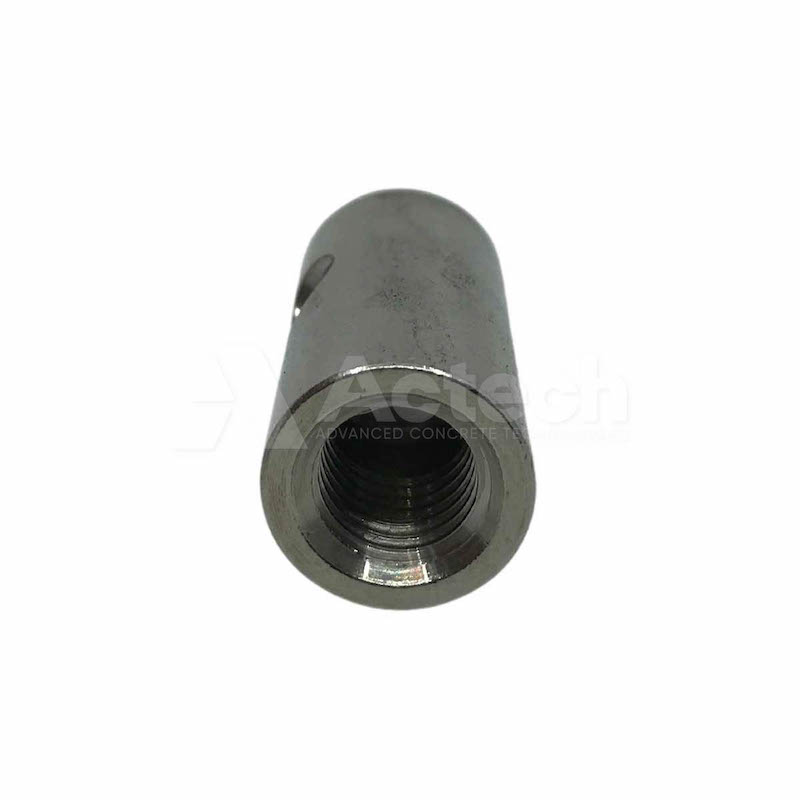

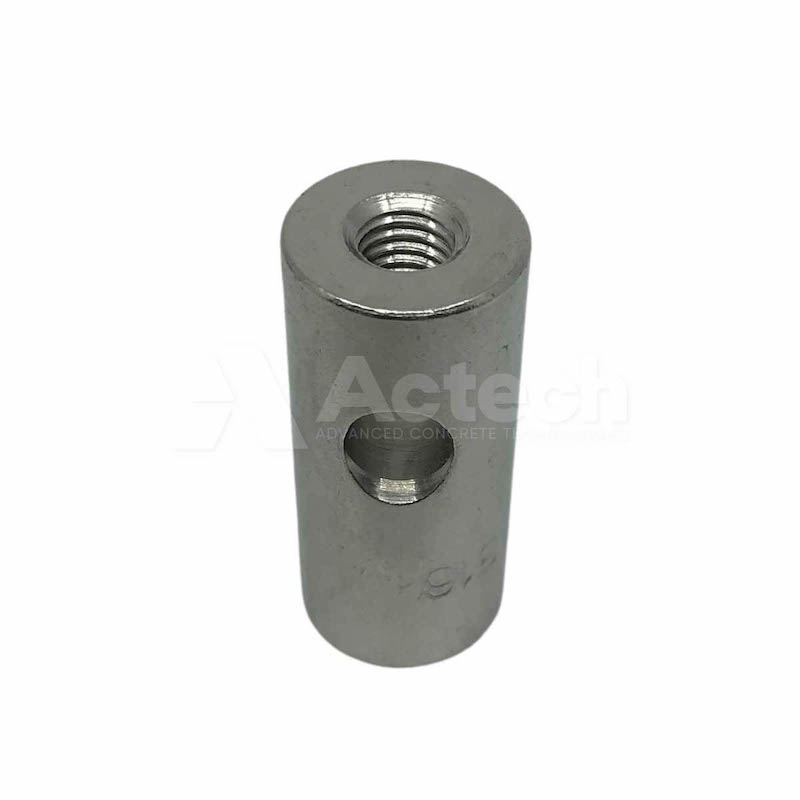

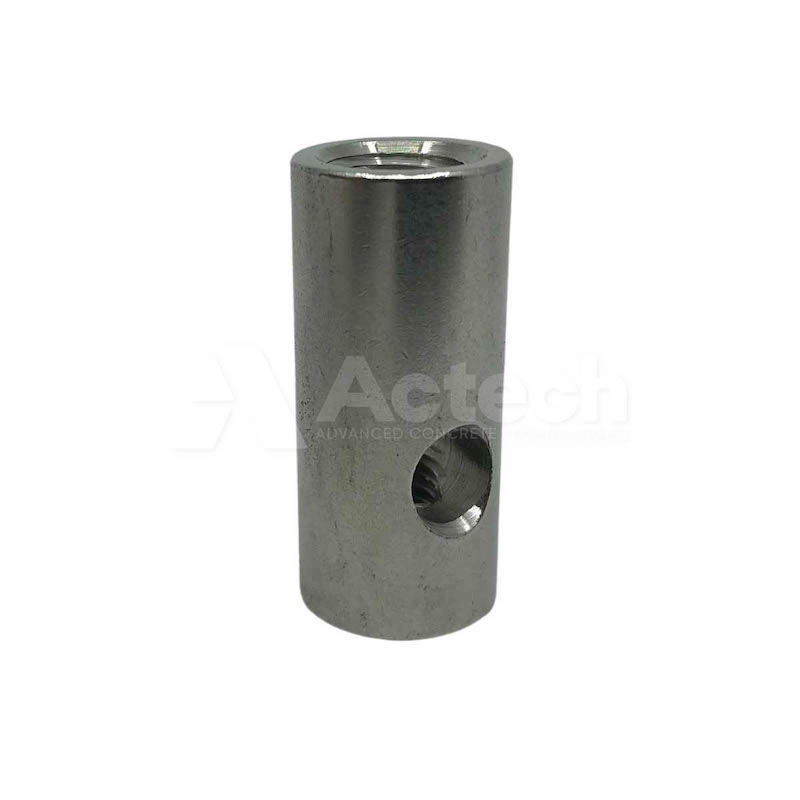

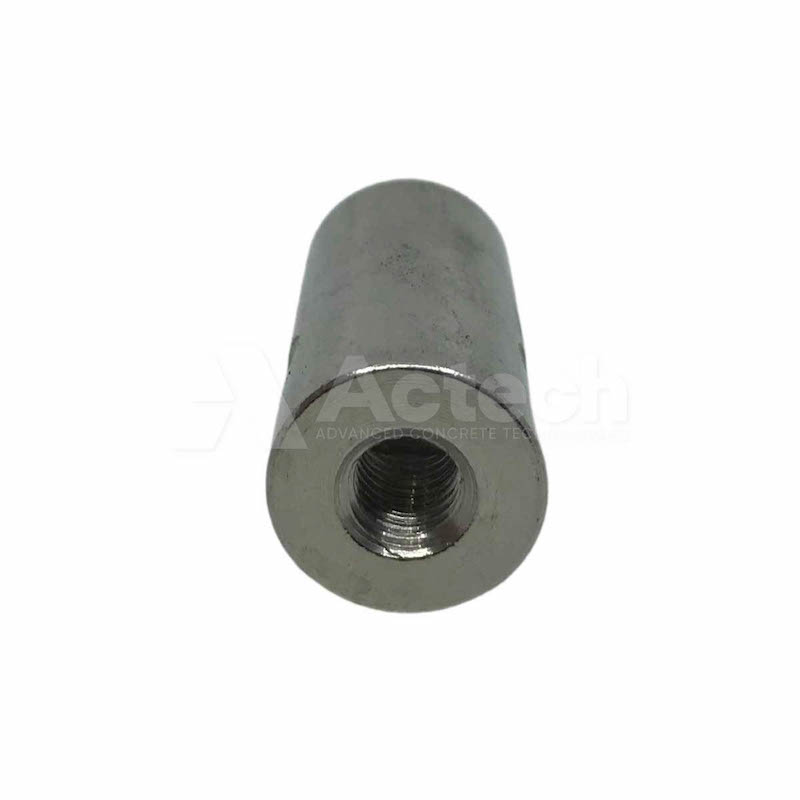

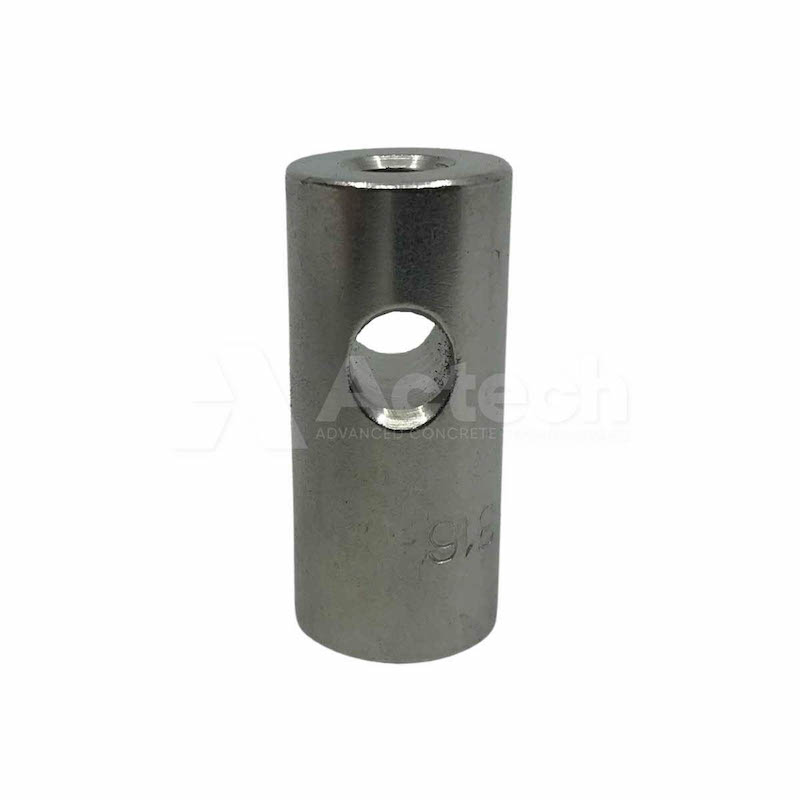

Duo Ferrule M12 x 40mm SS316 OD – 18mm
Duo Ferrule M12 x 40mm SS316 OD – 18mm
ALTAS Round Ferrule SS316 Range
| Name | Code | Chemical Type | Effective Depth | Length | Material | Style | Thread | Thread-length | Type Desc | X-Hole | |
| Duo Ferrule M30 x 120mm SS316 Round OD - 42mm | 512030.F.S6R | Ferrule | 104 | 120 | SS316 | Round | M30 | 65 | Ferrule | 20 | Order |
| Duo Ferrule M8 x 40mm SS316 OD - 18mm | 504008.F.S6R18 | Ferrule | - | 40 | SS316 | Round | M8 | 18 | Ferrule | 8 | Order |
| Duo Ferrule M20 x 80mm SS316 Round OD - 27.5mm | 508020.F.S6R | Ferrule | - | 80 | SS316 | Round | M20 | 38 | Ferrule | 15 | Order |
| Duo Ferrule M12 x 40mm SS316 OD - 18mm | 504012.F.S6R18 | Ferrule | 24 | 40 | SS316 | Round | M12 | 12 | Ferrule | 8 | Order |
| Duo Ferrule M10 x 40mm SS316 OD - 18mm | 504010.F.S6R18 | Ferrule | 24 | 40 | SS316 | Round | M10 | 12 | Ferrule | 8 | Order |
Specifications
| SKU | 504012.F.S6R18 |
| Shipping Weight | 0.05573 kg |
| Chemical Type | Ferrule |
| Effective Depth | 24 |
| Length | 40 |
| Material | SS316 |
| Style | Round |
| Thread | M12 |
| Thread-length | 12 |
| Type Desc | Ferrule |
| X-Hole | 8 |
