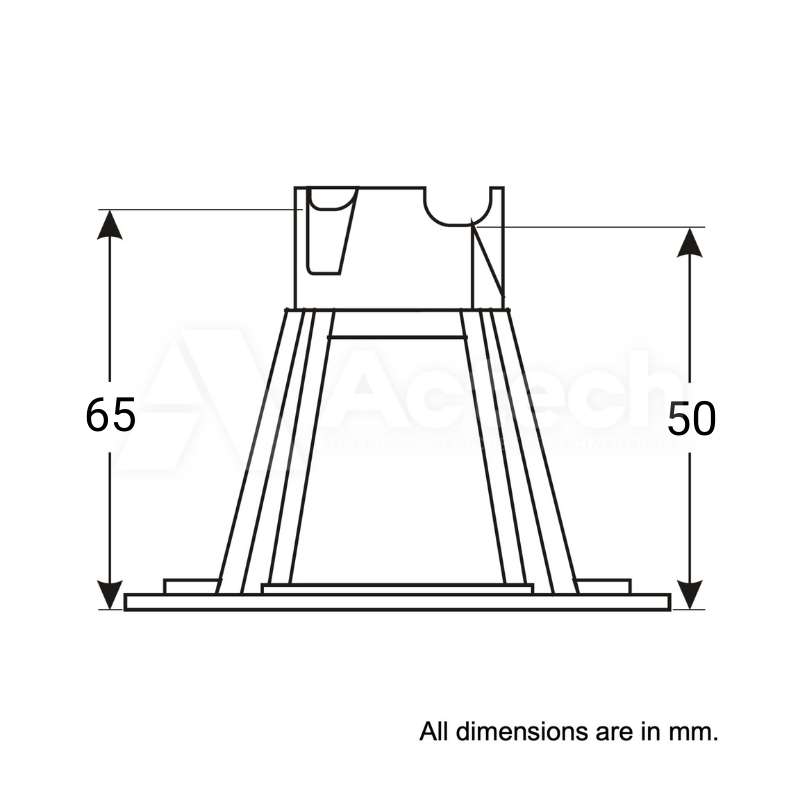

SOG Combo 50/65mm in Bags of 100 & Pallets of 6000

311005 In Stock Login to see prices
Shipping Calculator

Includes this product qty and cart items

Slab on Ground Range

Name Code Brand Cover Material Max Bar Size Min Bar Size Reo Type Strength (kg) Style
Trench Mesh Support 60 in Bags of 25 311200 - 60 Plastic - - Mesh - Single Order
SOG Combo 85/100mm in Bags of 100 & Pallets of 4000 311015 Actech 100,85 Plastic 25 4 Bar,Mesh 200 Single Order
SOG Combo 75/90mm in Bags of 100 & Pallets of 4000 311010 Actech 75,90 Plastic 20 4 Bar,Mesh 200 Single Order
SOG Combo 50/65C mm in Bags of 100 & Pallets of 6000 311006 Actech 50,65 Plastic 20 4 Bar,Mesh 200 Single Order
SOG Combo 50/65mm in Bags of 100 & Pallets of 6000 311005 Actech 50,65 Plastic 20 4 Bar,Mesh 200 Single Order
SOG Combo 25/40mm in Bags of 100 & Pallets of 5000 311001 Actech 25,40 Plastic 20 4 Bar,Mesh 200 Shim Order
SOG Bar 140C mm in Bags of 100 & Pallets of 3,200 311140 - 140 Plastic 25 4 Bar,Mesh 200 Single Order
SOG Bar 130C mm in Bags of 100 & Pallets of 3,200 311130 - 130 Plastic 20 4 Bar,Mesh 200 Single Order
SOG Bar 110C mm in Bags of 100 & Pallets of 3,200 311110 - 110 Plastic 20 4 Bar,Mesh 200 Single Order
SOG Bar 100C mm in Bags of 100 & Pallets of 3,200 311100 - 100 Plastic 20 4 Bar,Mesh 200 Single Order

Overview

Product Description

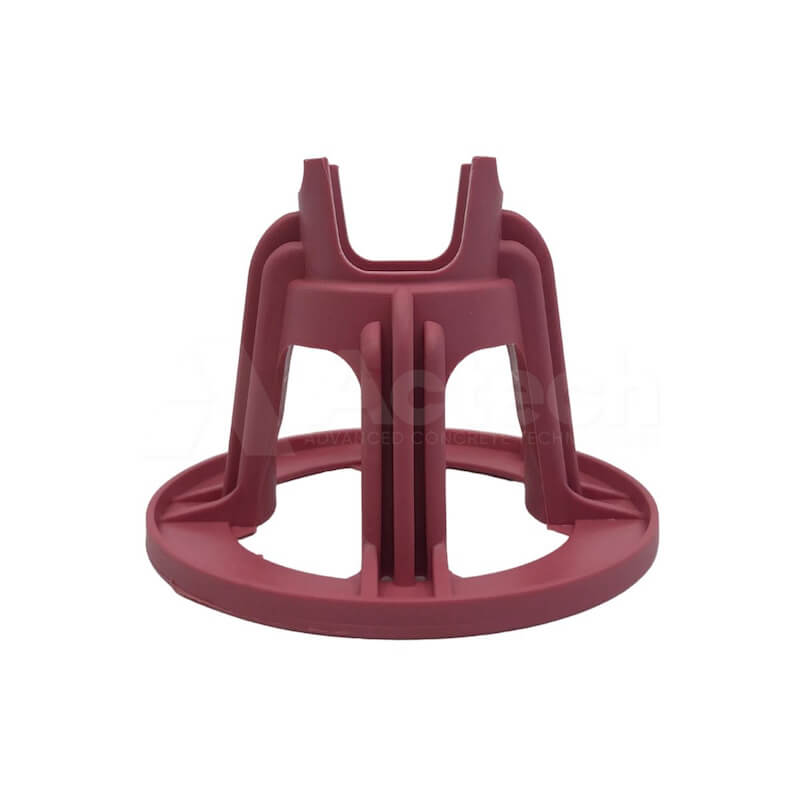

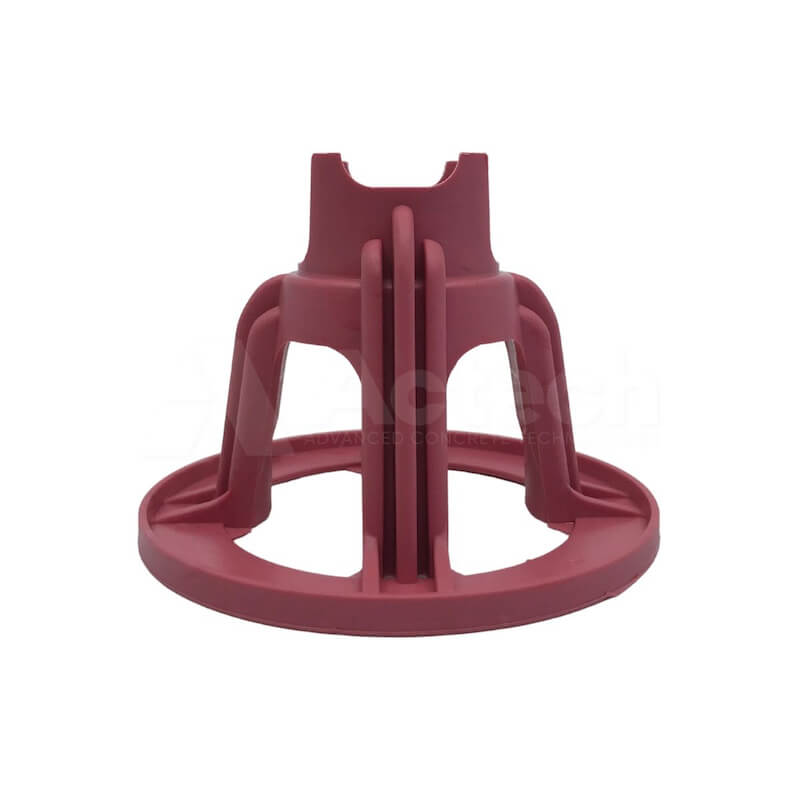

Actech SOG (Slab-On-Ground) Bar Chairs are used to set the reinforcing bar and mesh to the correct position before pouring the concrete in deep slab residential, commercial and civil applications including roadways.

The Slab on Ground (SOG) Bar Chairs have been designed as an economical, lightweight and easy to use alternative to metal bar chairs SOG chairs have a strong flat plastic base and are designed to sit flat on all types of surfaces including gravel, sand and concrete blinding.

Product Features

  • Easy to install Clip-On, suits reinforcing bar up to 20mm in diameter
  • Easy cover identification on the chairs

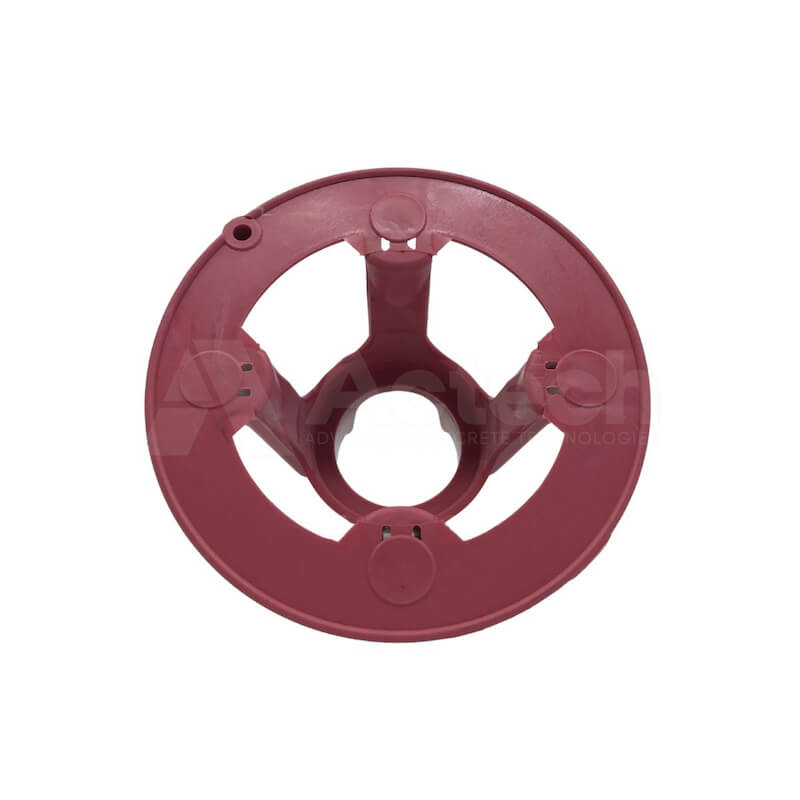

  • Flat base eliminates the need for separate bases
  • Solid design eliminates any voids under the mesh or reinforcing bar
  • Plastic material means no rust issues
  • Complies with the requirements of AS/NZS 2425:2015

Specifications

SKU 311005
Shipping Weight 0.0268 kg

Documents

SOG Combo 50/65 TDS (Technical Data)
SOG Combo TDS (Technical Data)
SOG Combo Bar Chair TDS (Technical Data)
