Ultrafix 20mm /4-10 in Bags of 1000

34UFIX20.410 In Stock Login to see prices
Shipping Calculator

Includes this product qty and cart items

Ultrafix Range

Name Code Brand Cover Material Max Bar Size Min Bar Size Reo Type Style
Ultrafix 50mm /5-16 in Bags of 100 34UFIX50.516 Actech 50 Plastic 16 5 Bar Wheel Order
Ultrafix 40mm /5-16 in Bags of 125 34UFIX40.516 Actech 40 Plastic 16 5 Bar Wheel Order
Ultrafix 35mm /5-16 in Bags of 250 34UFIX35.516 Actech 35 Plastic 16 5 Bar Wheel Order
Ultrafix 30mm /5-16 in Bags of 125 34UFIX30.516 Actech 30 Plastic 16 5 Bar Wheel Order
Ultrafix 30mm /4-10 in Bags of 500 34UFIX30.410 Actech 30 Plastic 10 4 Bar Wheel Order
Ultrafix 25mm /5-16 in Bags of 500 34UFIX25.516 Actech 25 Plastic 16 5 Bar Wheel Order
Ultrafix 20mm /5-16 in Bags of 500 34UFIX20.516 Actech 20 Plastic 16 5 Bar Wheel Order
Ultrafix 20mm /4-10 in Bags of 1000 34UFIX20.410 Actech 20 Plastic 10 4 Bar Wheel Order
Ultrafix 15mm /4-10 in Bags of 1000 34UFIX15.410 Actech 15 Plastic 10 4 Bar Wheel Order

Overview

Product Description

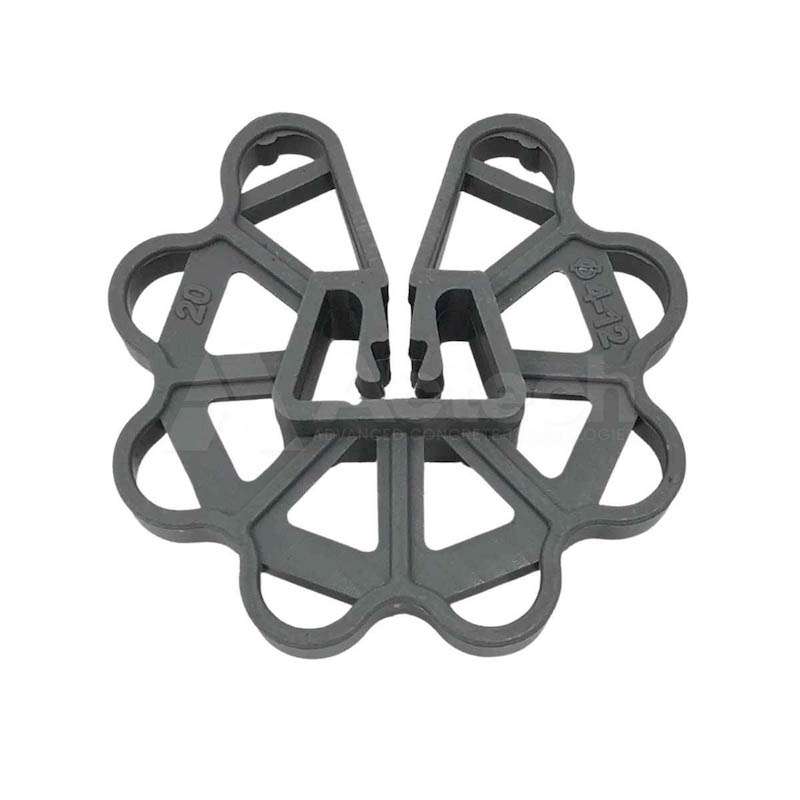

Conac’s Ultrafix Circular Spacers are designed for use in civil precast and commercial construction applications. The unique design offers 360 degrees of cover. The built-in sleeves prevent the circular spacer from twisting when in position, holding the bar firmly in place.

The central clip in the Ultrafix 5-16 model also locks the reinforcement, so it stops it from falling out even if the Ultrafix rotates against the formwork as the reinforcement is lowered. The circular spacer provides the same level of concrete cover, irrespective of the bar diameter in use.

Why are Ultrafix Circular Spacers popular?

Circular spacers, like Ultrafix, also go by the names wagon wheels, fast wheels, circulars or pile cage spacers. Circular spacers provide support in raked pile applications, where a reinforcing mesh or rebar is placed in a vertical position.

For example, circular spacers are designed to be used when lowering cages into pile holes or trenches. By clipping the circular spacer on to the cage, they keep the cage correctly spaced as it is lowered into the trench.

CONAC’s Ultrafix Circular Spacer will not twist out of the desired position, thereby ensuring your reinforcing steel is positioned exactly where you need it.

Fields of Application

  • Civil Precast and Commercial Construction
  • Columns and piers
  • Bar spacers in conduit

Specifications

SKU 34UFIX20.410
Shipping Weight 0.00538 kg
Brand Actech
Cover 20
Material Plastic
Max Bar Size 10
Min Bar Size 4
Reo Type Bar
Style Wheel

Documents

Ultrafix TDS (Technical Data)
